Squeegee control guide
This is a machine part used in the V1's squeegee control assembly. Click the image below to access more V1 parts drawings.
This part can be seen in the below parts diagram labelled as part #1:
Bush ED=48-38 ID=30 T=12
This part can be seen in the below parts diagram labelled as part #2:
Compression spring ED=26 FD=1.8 L=60
This part can be seen in the below parts diagram labelled as part #6:
Squeegee rubber connection support
This part can be seen in the below parts diagram labelled as part #10:

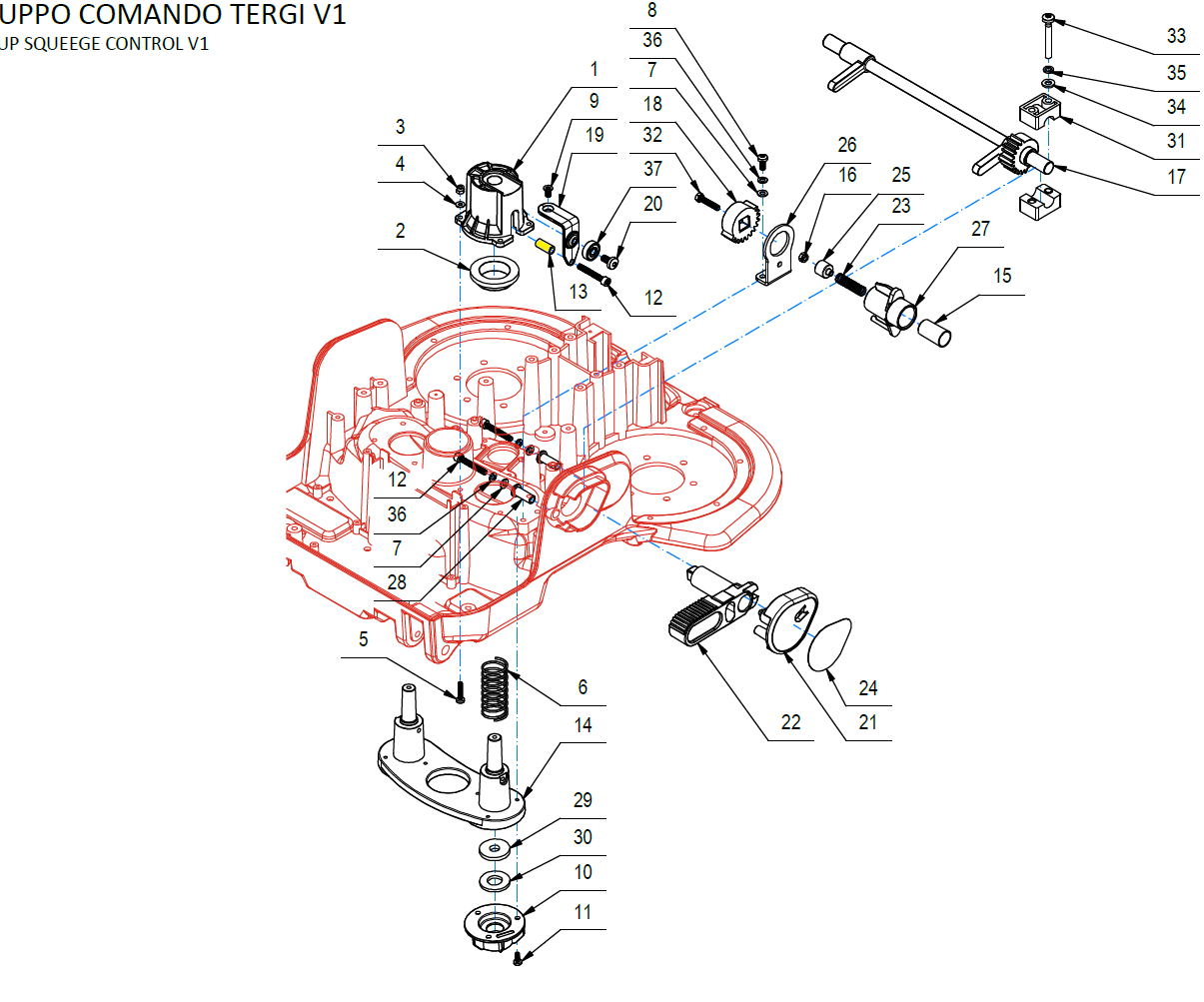

Spacer ED=8.5 ID=5.5 L=18.5
This part can be seen in the below parts diagram labelled as part #13:
Squeegee control support
This part can be seen in the below parts diagram labelled as part #14:
Pedal push-button bush
This part can be seen in the below parts diagram labelled as part #15:

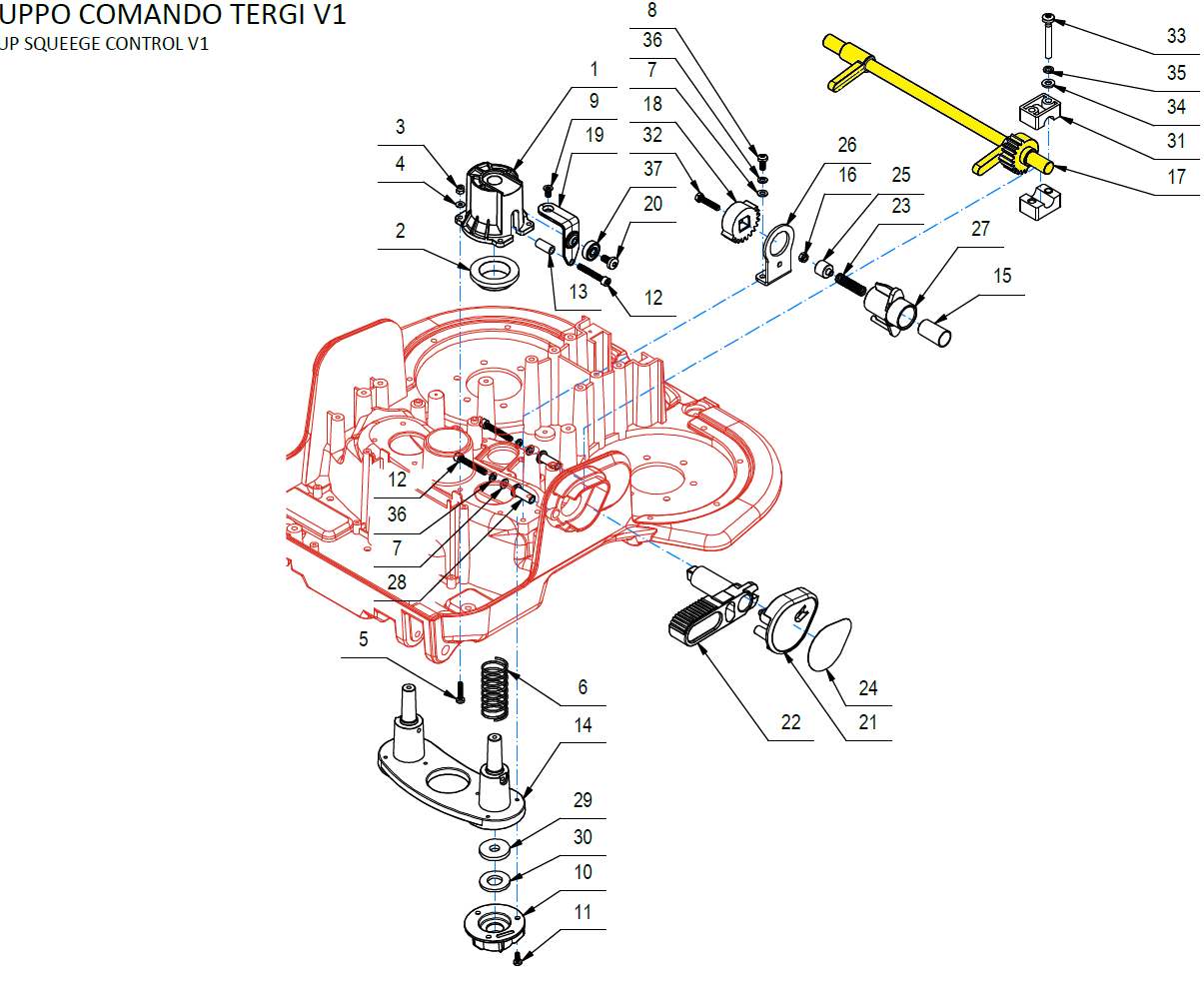

Squeegee control bar
This part can be seen in the below parts diagram labelled as part #17:
Squeegee gear control pedal
This part can be seen in the below parts diagram labelled as part #18:
Squeegee lever
This part can be seen in the below parts diagram labelled as part #19:

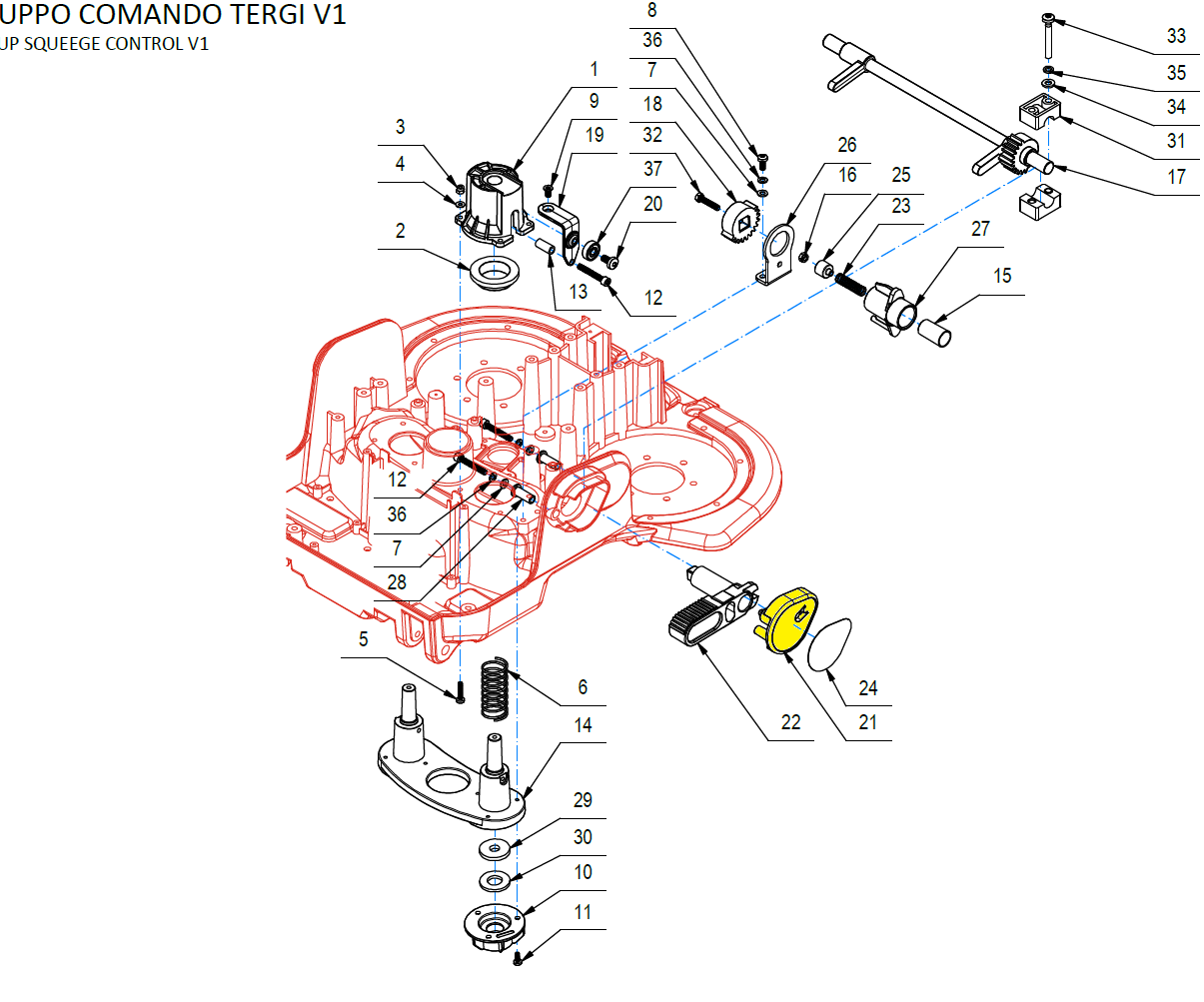

Squeegee control pedal button
This part can be seen in the below parts diagram labelled as part #21:
Control squeegee pedal
This part can be seen in the below parts diagram labelled as part #22:

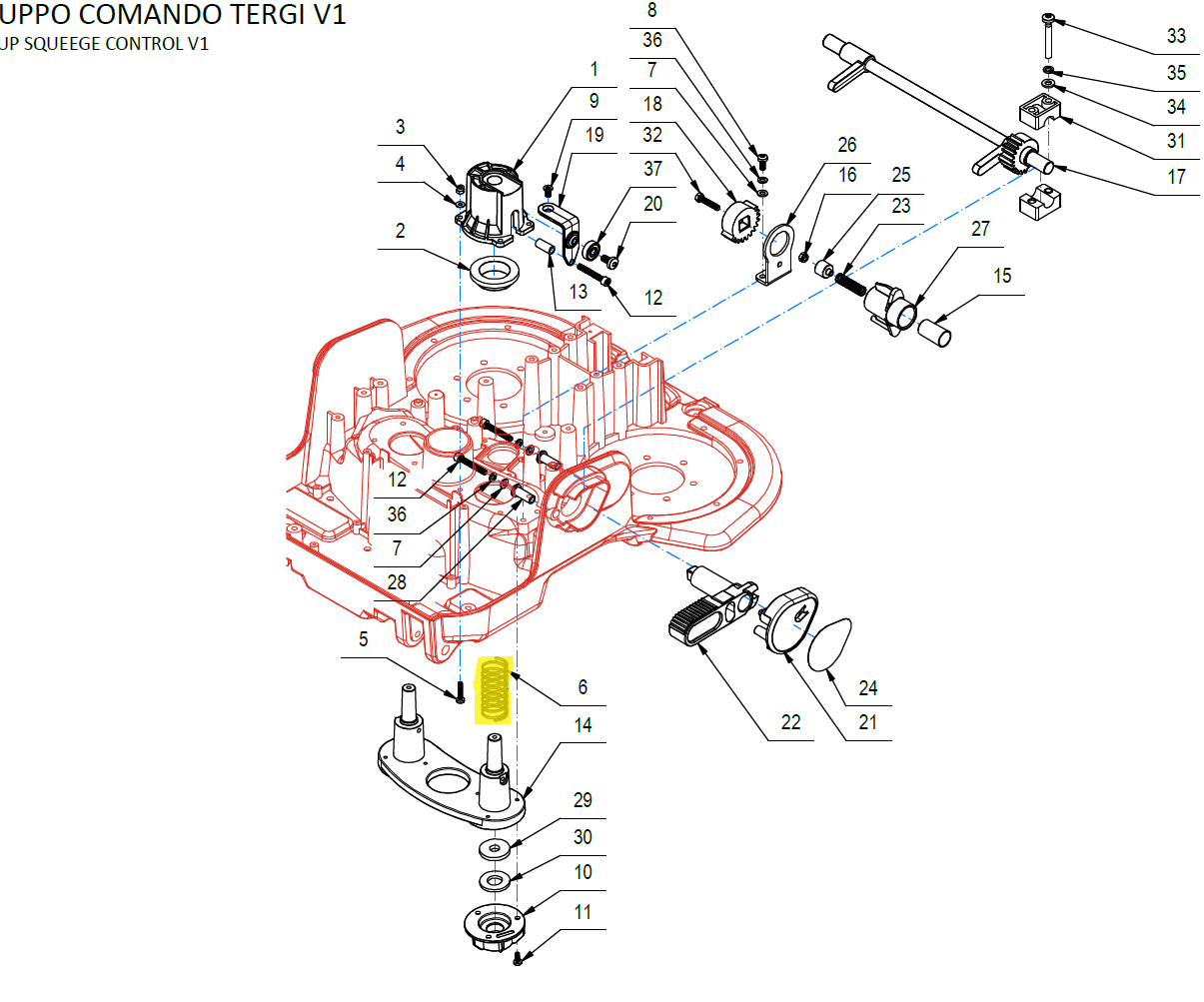

Compression spring ED=9.5 FD=0.8 L=34
This part can be seen in the below parts diagram labelled as part #23:

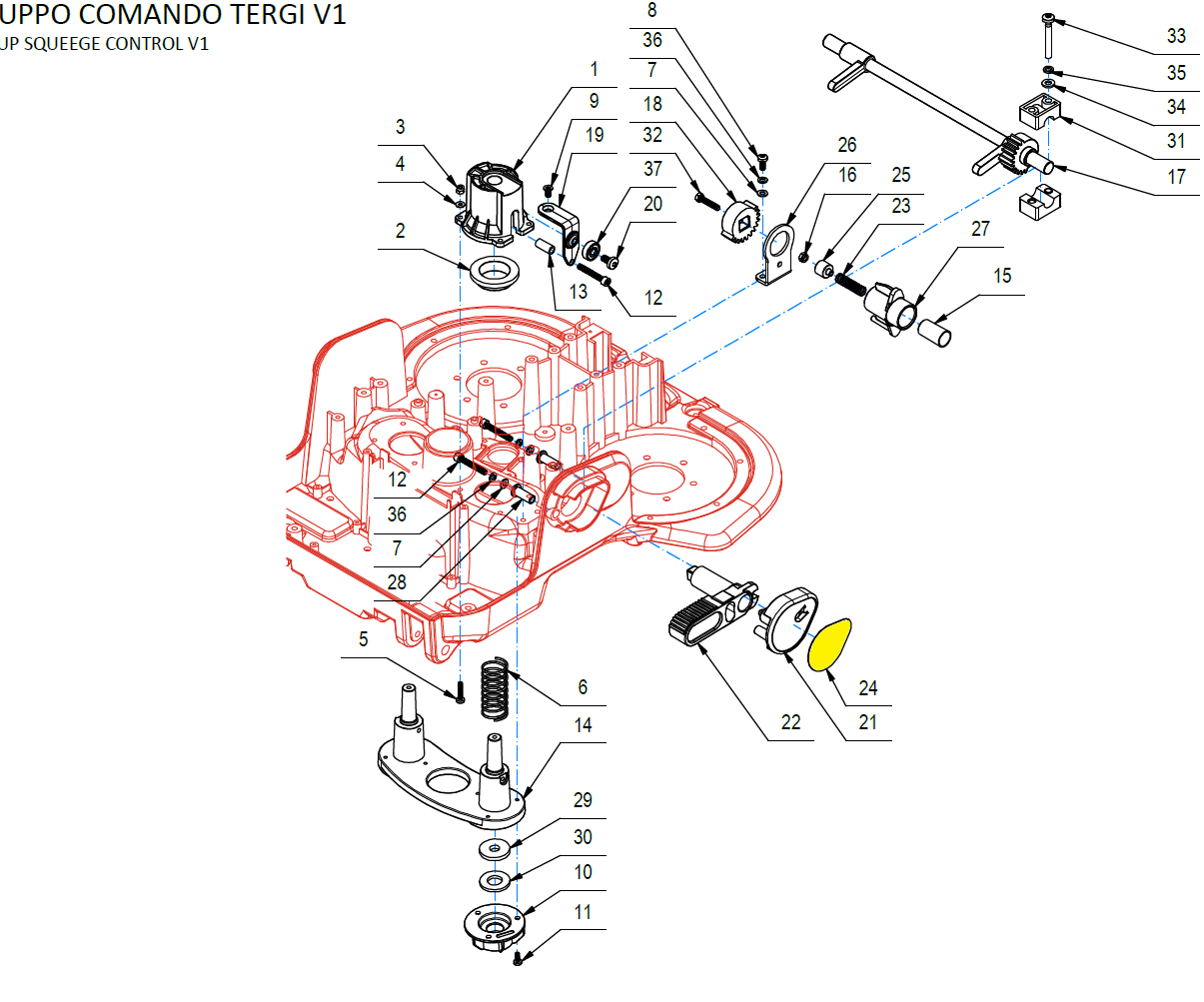

Label squeegee control pedal button
This part can be seen in the below parts diagram labelled as part #24:
Squeegee control pedal support spring
This part can be seen in the below parts diagram labelled as part #25:
Squeegee pedal control bracket
This part can be seen in the below parts diagram labelled as part #26:
